NSi1312 is a cost-effective isolation amplifier. It is developed based on NOVOSENSE capacitance isolation technology, in which the output is separated from the input. The linear differential input signal range of the component is 1.2V (full scale ± 1.5V). The high input impedance of the NSI1312 makes it ideal for connection to high voltage resistive dividers or other voltage signal sources with high output impedance. The fixed gain of the component is 1, and two versions are available: one is with differential analog output (NSI1312D), and the other is with single-ended analog output (NSI1312S). Low misalignment and gain drift ensure accuracy over the entire temperature range. High common mode transient immunity (CMTI) ensures that the component can provide accurate and reliable measurement results even when working with high power switches, such as in motor control applications. The fail-safe function (high-side supply voltage loss detection) simplifies the design and diagnostics of the system.
Product Features
• 5000Vrms(SOW8 package)/3000Vrms(SOP8 package) insulation voltage
• Linear supply voltage range of ± 1.2V
• Fixed gain: 1
• Low offset error and temperature drift：±5mV(Max),± 20μV/ °C(Typ)
• Low gain error and temperature drift：±1%(Max), ±30ppm/ °C(Typ)
Low non-linearity and temperature drift：±0.3%(Max), ±10ppm/℃(Typ)
• SNR: 78dB(Typ, BW=50kHz)
• Bandwidth: 100kHz(Typ)
• High CMTI：150kV/us(Typ)
• System-level diagnostic functions:
• VDD1 monitoring
• Operation temperature: -40°C to 125°C
• RoHS compliant package:
• SOW-8/SOP8(150mil)
Safety Certificate
• UL1577 qualified: 5kVrms for 1 min. (SOW8), 3kVrms for 1 min. (SOP8)
• CQC qualified: Conform to GB4943.1 -2011
• CSA qualified: Components conform to 5A
• VDE qualified: DIN V VDE V 0884-11:2017-1
Application
• Bus voltage monitoring
• AC motor control
• Power and PV inverters
• UPS
• Onboard charger

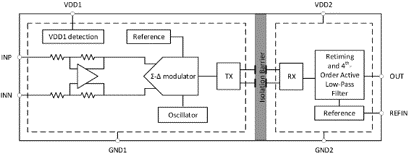

Functional Block Diagram
